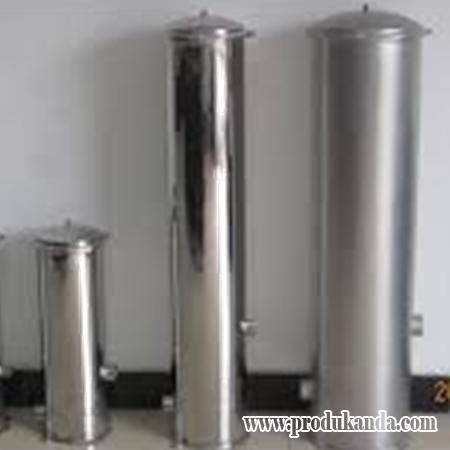

Cartridge Filter Housing berfungsi untuk meletakkan cartridge filter pada proses penyaringan air. PT Guna Indotirta menawarkan Cartridge Filter Housing yang terbuat dari bahan material stainless steel, glass-reinforced nylon atau polypropylene., terdiri dari beberapa type dan ukuran, yaitu : 1. Stainless Steel Cartridge Filter Housing
 |
 |
 |
 |
|
Single Cartridge Filter Housing
|
Multi Cartridge Filter Housing
(CFH 3 to 12) |
Multi Cartridge Filter Housing
(CFH 5 to 20) |
Multi Cartridge Filter Housing
(CFH 7 to 28) |
|
|
|
|
|
 |
 |
 |
|
|
Multi Catridge Filter Housing
(CFH 3 to 12 SB) |
Multi Catridge Filter Housing
(CFH 5 to 20 SB) |
Multi Catridge Filter Housing
(CFH 7 to 28 SB) |
|
|
|
|
|
|

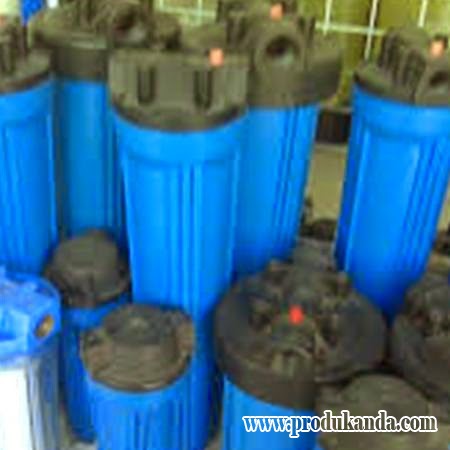

2. Plastic Cartridge Filter Housing
a. Standard Filter Housing
Tehcnical Specifications:
| Material (housing) | Polypropylene |
| Material (cap) | Reinforced polypropylene |
| Material (o-ring) | Buna-N |
| Material (pressure relief) | Polypropylene |
| Maximum temperature | 52°C / 125°F |
| Maximum pressure | 125 psi |
10" Length (2.5" Diameter)
| Part Number | Description | Inlet Size (in.) | Outlet Size (in.) |
| H-1034-BL | Blue 10” | 3/4” | 3/4” |
| H-1034-CL | Clear 10” | 3/4” | 3/4” |
20" Length (2.5" Diameter)
| Part Number | Description | Inlet Size (in.) | Outlet Size (in.) |
| H-2034-BL | Blue 20” | 3/4” | 3/4” |
| H-2034-CL | Clear 20” | 3/4” | 3/4” |
b. Big Blue Filter Housing
| Technical Specifications: |
|
10" Length (4.5" Diamater) |
|||
| Part Number | Description | Inlet Size (in.) | Outlet Size (in.) |
| BBH-1034 | Blue 10” | 3/4” | 3/4” |
| BBH-101 | Blue 10” | 1” | 1” |
| BBH-1015 | Blue 10” | 1-1/2” | 1-1/2” |
20" Length (4.5" Diameter) |
|||
| Part Number | Description | Inlet Size (in.) | Outlet Size (in.) |
| BBH-201 | Blue 20” | 1” | 1” |
| BBH-2015 | Blue 20” | 1-1/2” | 1-1/2” |
